Bow Top Railings, Supplied with Posts and Panels. Popular Finishes are Plastic Coated and Wrought Iron Black
Bow top railing systems are offered in five major styles: single, interlaced, bow in bow, bar in bow and bow and bar.
The railings are made from steel tubes or solid bars in all heights up to 2.4 metres. Popular specifications as below table:
| Fence height ( metres ) |
Embedded length of post | Diameter of vertical Round (mm) | Spacing of verticals ( centres ) |
Size of horizontals (mm) | Size of post | Size of post |
|---|---|---|---|---|---|---|
| 1 | 450 | 12 | 112 | 30 x 10 | 102 x 44 | 50 x 50 x 3 |
| 1.2 | 550 | 12 | 112 | 30 x 10 | 102 x 44 | 50 x 50 x 3 |
| 1.8 | 600 | 20 | 131 | 50 x 10 | 102 x 44 | 70 x 70 x 3 |
| 2.4 | 600 | 22 | 145 | 50 x 10 | 102 x 44 | 80 x 80 x 3 |
Posts Fittings for Bow Top Railings:
Intermediates, Corner and End and are available in a wide range of sizes and materials, with the provision to be stepped or cranked to suit site conditions, secured in concrete (supplied complete with two support legs per standard panel for concrete-in fixing) or base plated for surface mounting. All posts come with welded steeel caps. A range of post head details available for all railings as an optional extra.
Fencing Panels
Panels are available as standard to 2.72m wide with centres of 2.75 metres straight and level, and welded in accordance with BS 1722 Pt9. Panels can also be made to suit your specific requirements: any length, straight or curved.

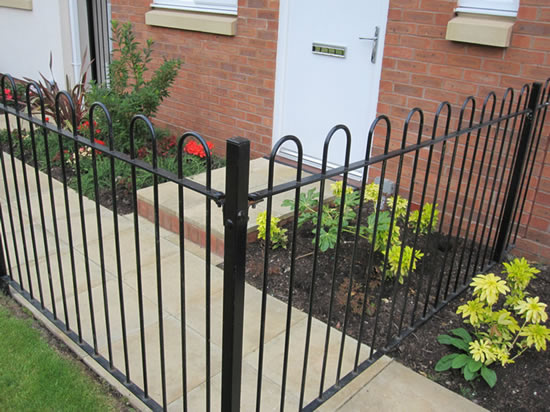

Beautiful Black Iron Tow Top Fencing Rails

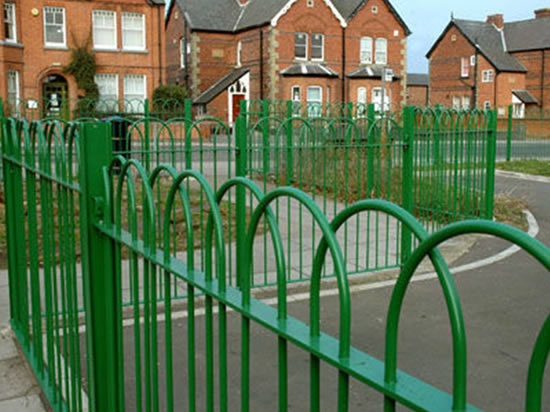

Steel Tubular Bow Top Fencing Rails for Gardens
Top Fencing System
