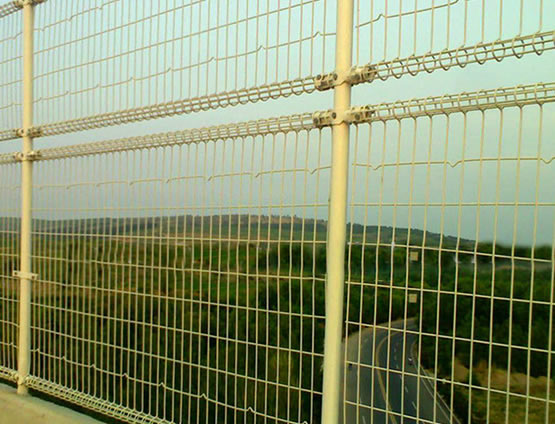

Wire Mesh Fences with Double Loop Tops
Double Loop Top Fences are popularly used for highway fencing, perimeter fencing, park fencing and garden fencing. Supplied in plastic coating mostly with good corrosion resistance and weather resistance.
Standard Specifications for Double Loop Top Fencing Panels:
Dia: 3mm-6mm
Opening: 50-250mm
Height: 0.5-3.0m
Length: 2.0-25m
Mesh size: 50×100 mm, 50×150 mm, 50×200 mm, 75x100mm,100×100 mm, 100×200 mm, etc.
Double Loop Fence Fabrics
Double Loop Top Fences Specification:
| Mesh | Wire diameter | Surface Treatment | Panel Width | Folds NOS. | Height | Post height |
| 50 x 200 mm 50 x 150 mm 50 x 100 mm 55 x 200 mm |
3.0mm, 4.0mm, 4.5mm, 5.0mm | Galvanized and Electrostatic polyester coated or PVC dip coated |
2.50m | 2 | 630 mm | 1200 mm |
| 2 | 830 mm | 1400 mm | ||||
| 2 | 1030 mm | 1500 mm | ||||
| 2 | 1230 mm | 1800 mm | ||||
| 2 | 1430 mm | 2000 mm | ||||
| 2 | 1630 mm | 2200 mm |
| Mesh | Wire diameter | Surface Treatment | Panel Width | Folds NOS. | Height | Post height |
| 50 x 200mm 50 x 150 mm 50 x 100 mm 55 x 200 mm |
3.0mm, 4.0mm， 4.5mm, 5.0mm | Galvanized and Electrostatic polyester coated or PVC coated | 2.50m | 4 | 1400 mm | 2000 mm |
| 4 | 1600 mm | 2200 mm | ||||
| 4 | 1800 mm | 2400 mm | ||||
| 4 | 2000 mm | 2600 mm | ||||
| 4 | 2200 mm | 2800 mm | ||||
| 4 | 2400 mm | 3000 mm |

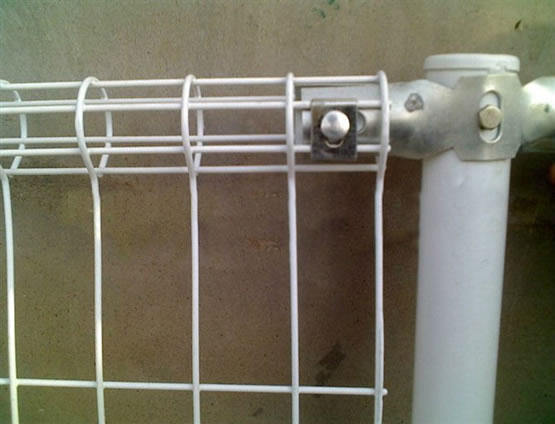

Fence post:
1) SHS post: 50x50mm, 60x60mm.
2) RHS post: 60x40mm, 80x40mm.
3) Round post: 48mm, 60mm, 75mm.
4) Peach post:50x70mm, 60x90mm, 70x100mm
Fence finish
Hot dipped galvanized
Galvanized and polyester powder spraying coated
Galvanized and powder dipped coated
Standard colours: RAL 6005 green, 9005 black,5010 blue, 3000 red, 9010 white
Other colours: All other RAL colours available.
Double Loop Top Wire Mesh Fences for Bridge
Fence application: Fencings for factories, warehouses, buildings and public utility facilities, such as schools, sports fields and sports stadiums, playgrounds, as well as private premises.
Double Loop Top Fences Packing: pallet or bulk in container.
Top Fencing System
