Roll Top Fencings and Interlacing Railings, No Burrs, Easy Installation. Enhanced Security.
Roll Top Fence has a rolled top for enhanced safety and rigidity of fence system. Along the top side and bottom side of fence panels, there are closed section located, the roll top mesh fence system is the most friendly system for installation. It has no burrs or sharp, raw edges in the whole sheet of mesh fence.
Specifications of roll top fence
| Mesh | Wire Diameter |
Panel Width |
Folds Num. | Height | Surface Treatment |
| 50x100mm 50x150mm 55x150mm 50x200mm 75x150mm |
3.00mm 4.00mm 4.50mm 5.00mm 6.00mm |
240mm 300mm |
2 | 900mm 1200mm 1500mm 1800mm 2100mm 2400mm |
1. Electric galvanized before PVC coated 2. Hot dipped galvanized before PVC coated 3. PVC coated without galvanized. 4. Electric galvanized 5. Hot-dipped galvanized |
| all size can be adjustable according to customer requests. | |||||

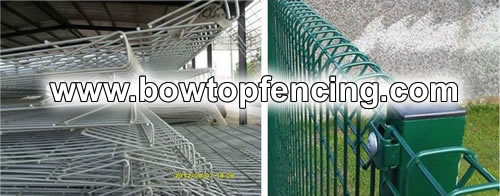

Roll Top Fence with Nice Appearance
Panels: The panels are 3000 / 2000mm wide and the heights range from 900 to 2400mm. The panels have a unique and "user friendly" closed beam section located along the top and bottom edge of the panel. There is no sharp or raw edges, Roll Top panels are suitable where safety is a consideration.
Posts: 1) SHS post: 60x60mm 2) Round post:48mm, 60mm
Standard Color
Green RAL6005
Black RAL9005
Custom colours are available
Galvanized /
PVC Coated Roll Top Fence
Coating: The roll top fencing panels are made of pre-galvanized wires. An adhesion coating is applied to allow perfect adhesion with the polyester coating. (min. 100 micron).

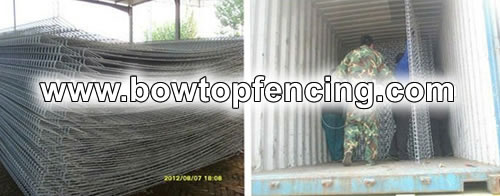

Packing & Delivery: 1) pallet or bulk on container 2) custom to clients' requests

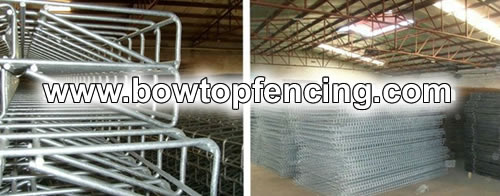

End Details and finished products in stock

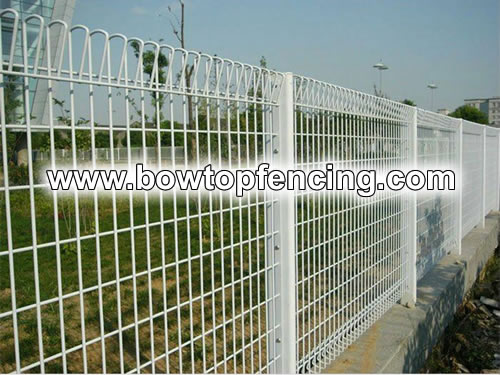

Roll top fence products
Top Fencing System
