Tubular Fencing
We offer metal tube fabricated fencing panels with high rigidity features.
Generally, tubular fencing is used around children in areas such as schools, parks, play areas and fields. However, its strong, but soft approach lends itself for many other applications.
The sizes and specification of the product can be changed to suit your individual requirements.
Tubular fencing is made with roll top, bow top and loop top styles.
Bow top tubular railings are a safe and secure fencing solution.
Specification of tubular fencing:
| Fence height |
Post height |
Post section |
Top rail | Bottom rail |
Posts per bay |
Bar centres | Bar section | Posts per bay |
Weight per meter |
| 1.0m | 1.450 m | 50 x 50 mm | 40 x 10 mm | 40 x 10 mm | 1 | 112 mm | 12 mm | 2.75 m | 17.32 kg |
| 1.2m | 1.650 m | 50 x 50 mm | 40 x 10 mm | 40 x 10 mm | 1 | 112 mm | 12 mm | 2.75 m | 19.14 kg |
| 1.5m | 1.925 m | 50 x 50 mm | 40 x 10 mm | 40 x 10 mm | 1 | 116 mm | 16 mm | 2.75 m | 30.63 kg |
| 1.8m | 2.325 m | 60 x 60 mm | 50 x 10 mm | 50 x 10 mm | 1 | 116 mm | 16 mm | 2.75 m | 37.33 kg |
Below is the application photos of Tubular Fencing

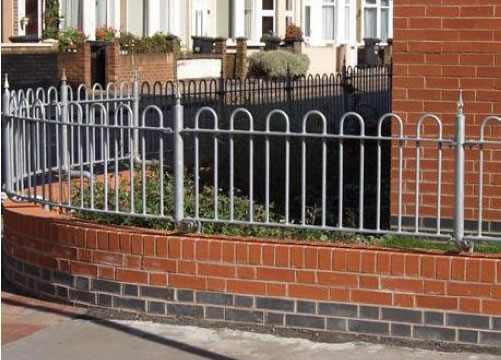

Tubular Fencing around residences

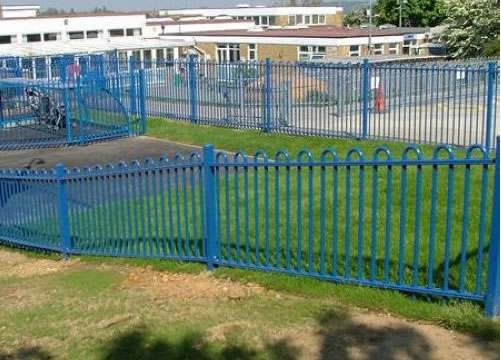

School Tubular Fencing
Top Fencing System
