Anti Climb Security Fence Welded Mesh + Razor Barbed Wire
358 Welded mesh security fence is also called Anti climb fence, with the heavy duty welded mesh panel providing the highest degree of security with excellent see through visibility for a security fence system.
Corrosion protection treatment of welded mesh fences:
Hot dip zinc coating: Zinc Class A (min. 275g/m²) or Class C (min. 110g/ m²) - coated, Heavy galvanised wire Class A (min. 275g/m²) or Lightly Galvanised wire Class B (min. 135g/m²) , + / or powder coating.
358 welded steel mesh is commonly treated with marine grade heavy plastic powder coating after zinc galvanised. 8 to 10 feet height is common size for black powder coated steel 358 mesh, fitted with 11 feet length posts black powder coated and other fittings. Galvanized and green powder coating also available.
The type of welded mesh fence is anti-cut, anti-climb fencing, with water resistance marine grade powder coating Plastic.
Popular products: ½” x 3” 8 gauge galvanized, and ½” x 3” 10.5 gauge GAW plus heavy duty PVC coating. Wire: 4 mm, galvanized + powder coating. General installation height is 1.5 m.
358 Mesh Panels – Hot Dipped Galvanised
2.4mts high x 2550mm long
Including all posts/fixings/etc

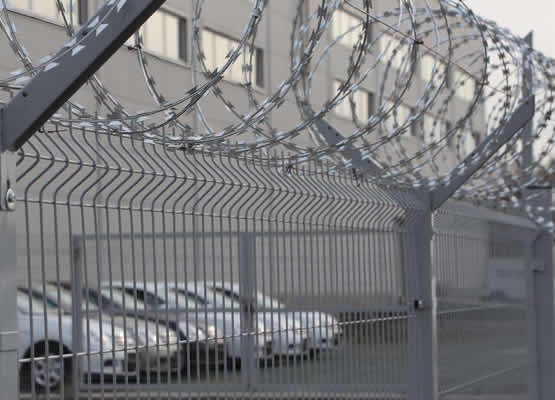

76.2mm×12.7mm×4mm wire diameter in metric, 3D panels, topped with concertina barbed wire
Welded Wire Mesh Panels Sizes:
| Mesh | Wire Thickness | Surface Treatment | Panel Width | Panel Height | Fence Height | |
| Big Panel | 50 x 100 mm 55 x 100 mm |
4.00 mm 4.50 mm 5.00 mm |
Gal. + PVC coated | 2.50m 3.00m |
2000 mm | 2700 mm |
| 2300 mm | 3200 mm | |||||
| 2600 mm | 3700 mm | |||||
| 530 mm | 2700 mm | |||||
| V panel | 630 mm | 3200 mm | ||||
| 730 mm | 3700 mm |
Y post
| Profile | Wall Thickness | Surface Treatment | Length | Base Plate | Rainhat |
| 60 x 60mm | 2.0mm 2.5mm |
Gal. + PVC coated | 2700mm I + 530mm V | Available On request |
Plastic or Metal |
| 3100mm I + 630mm V | |||||
| 3600mm I + 730mm V |
Material:
Low carbon steel wire, hot dip galvanized, or plastic coated.
Fence Height:
1.8m, 2m, 2.4m, 2.7m, 3.0m, 4.0m, 5.2m
Mesh size:
76.2mm x 12.7mm
Horizontal Wires:
4mm --6mmx 12.7mm centers
Vertical Wires:
4mm --6mmx 76.2mm centers
Post Centers: 2.5mm
Anti Climbing Concertina wire:
Barbed Tape: 0.5 Mm Thick (SS-304)
Core Wire: SS-304 Wire 2.50mm Dia. High Tensile Wire.
Tape Width: 21mm
Barbed Spacing: 37mm ( +/-1 mm)
Barbed Length: 65mm ( +/-1 mm)
Number Of Turns: 33 Per Roll
Welded Mesh Fence, Hot Dipped Galvanised and Powder Coated
Finish powdercoated RAL 6005 green

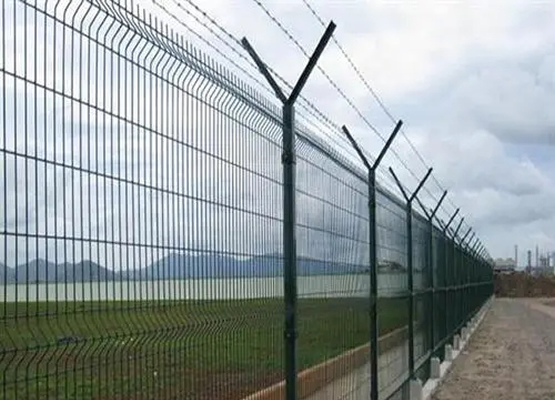

With razor barbed wire on the top of security fence
| Fence description | |||
| Panel height | 2100mm | 2400mm | 3000mm |
| Fence height | 2134mm | 2438mm | 2997mm |
| Panel width | 2515mm | 2515mm | 2515mm |
| Hole size | 12.7mm x 76.2mm | 12.7mm x 76.2mm | 12.7mm x 76.2mm |
| Horizontal wire | 4mm | 4mm | 4mm |
| Vertical wire | 4mm | 4mm | 4mm |
| Panel weight | 50kg | 57kg | 70kg |
| Post | 60 x 60 x 2mm | 60 x 60 x 2mm | 80 x 80 x 3 |
| Post length | 2.8m | 3.1m | 3.1m |
| Flat bar | 40x6m slotted | 40x6m slotted | 40x6m slotted |
| Fixings | 8 gal bolt c/w permanent security nut | ||
| No. of fixings | 8 | 9 | 11 |
| Customization accepted | |||
Curved Security Weld Mesh Fence with Razor Spike Top
Perimeter security guarding fence panels with fencing panels and razor spikes, black powder coated finish

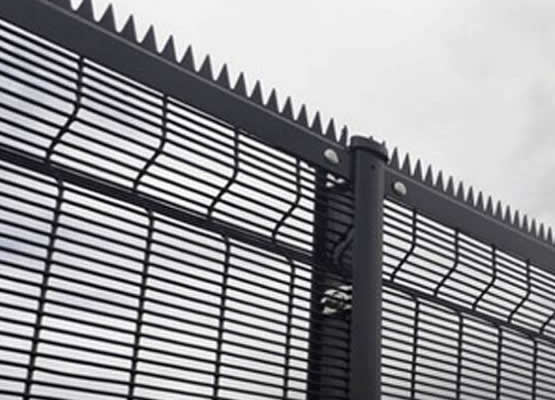

Steel fencing topped with shark tooth spikes
Top Fencing System
